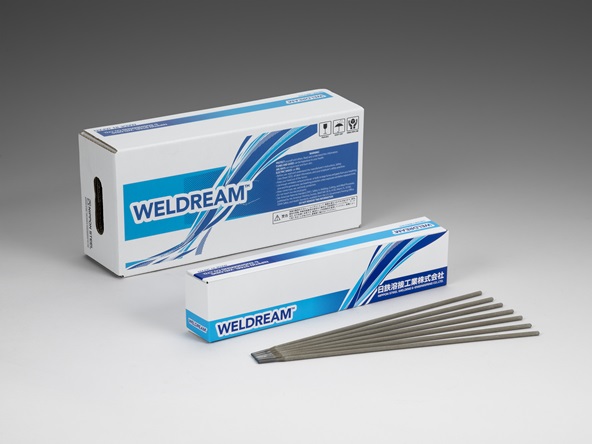

Mild Steel·490~550MPa High Tensile Strength Steel Stick Electrode EX-50F
Characteristics
EX-50F is an Iron powder titania type electrode which produces an extremely small amount of fumes. It is used for plates with carbon equivalent (C+1/6Mn+1/5Cr+1/5Mo+1/5V+1/15Ni+1/15Cu) less than 0.36% and thickness up to 25 mm, and gives a beautiful bead of equal leg length and free from undercuts. The slag is easy to remove and the weld metal is not susceptible to primer. It also is suitable for gravity welding.
Applications
- JIS Z 3211 E4940-G
- AWS A5.1 E7024☆
Downloads
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
