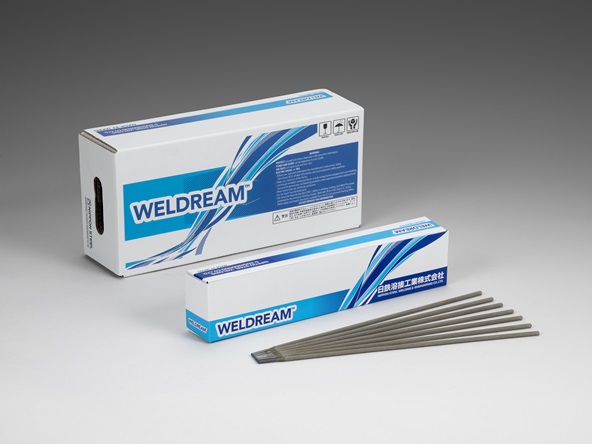

Heat Resisting Steel Boiler Tube/Pipe Stick Electrode N-1S

Characteristics

N-1S is low hydrogen type electrodes for 1 to 1.50%Cr-0.5%Mo steel in all posirions. This weld metal is required postheating at 620 to 720°C and is able to used at high temperatures up to 550°C.

Applications

Welding of piping steel (STPA22, 23, A335-P11, P12), boiler and heat exchanger, tubes (STBA22, 23, A199-T11, A213-T11, T12), rolled steel (SCMV2, 3, A387Gr11, 12), cast steel (A217-WC6) and forged steel (A 182-F11, F12, A336-F12).

N-1S
  • AWS A5.5 E8016-B2☆

Downloads

  • Not all product sizes have been certified.
  • Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
  • ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
  • ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
