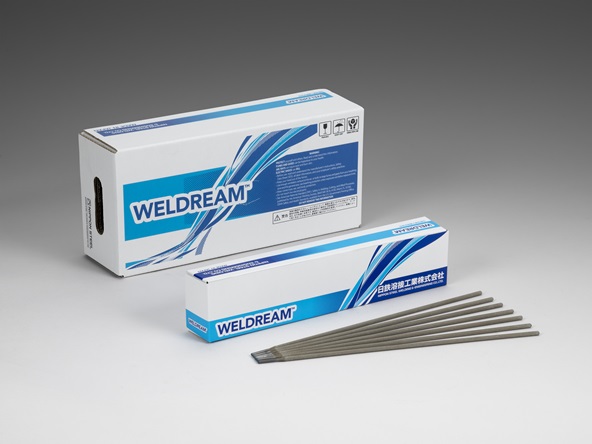

Surfacing Stick Electrode H-500

Characteristics

H-500 is a low hydrogen type electrode for surfacing machine parts which are subjected to metal to metal abrasion or earth and sand abrasion and are used without machining. The weld metal of about 500 Vickers hardness and martensitic structure provides reasonable toughness and stress resistance to some extent.

Applications

For surfacing of track links, bulldozer idlers and bucket lips
Vickers Hardness level: 500

H-500
  • JIS Z 3251 DF2B-500-B☆

Downloads

  • Not all product sizes have been certified.
  • Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
  • ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
  • ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
