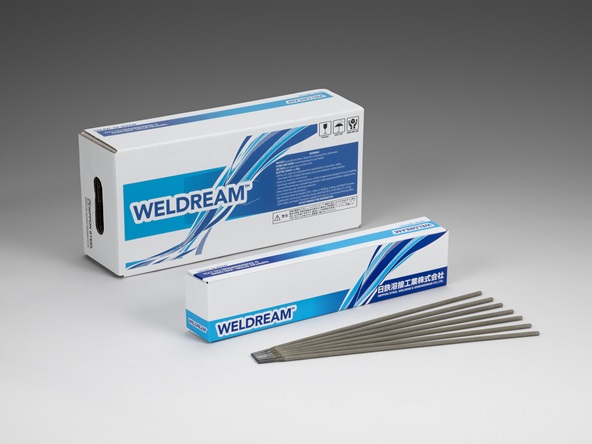

Surfacing Stick Electrode H-13MN
Characteristics
The weld metal has the hardness of about 200~250 Vickers as welded and is work hardened to 450~550 Vickers, like H-13CrM, but toughness and crack resistance are better since it contains Ni.
Applications
For filling up cavities of high manganese cast steel and surfacing of parts subjected to impact abrasion such as boring mills
- JIS Z 3251 DFMB-250-B☆
Downloads
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
