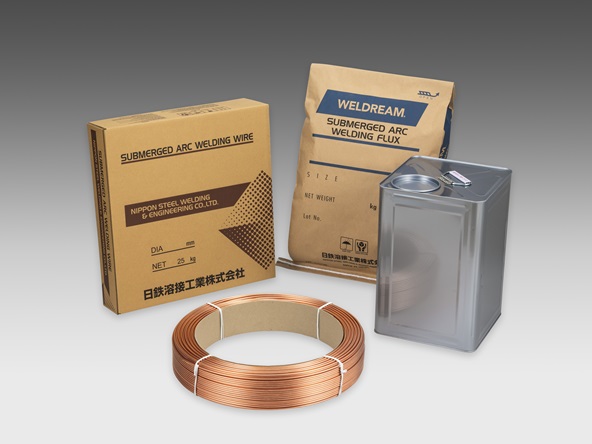

Mild Steel·490~550MPa High Tensile Strength Steel Submerged Arc Welding Material NF-1×Y-DM3

Characteristics

Outstanding efficiency and economy are obtained in multi-layer narrow gap welding of heavy plates since flux consumption rate is low and slag is extrmely easy to remove. Weld metal shows excellent toughness. Weldability and mechanical properties are excellent also in high current welding with normal groove and strength is sufficient even after stress relief annealing for long hours.

Applications

Narrow gap welding and single layer welding of 490MPa high tensile strength for pressure vessels, heavy electric machinery.

NF-1×Y-DM3
  • JIS Z 3183 S58J2-H☆
  • AWS A5.23 F8A4-EG-G☆ F8P2-EG-G☆

Downloads

  • Not all product sizes have been certified.
  • Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
  • ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
  • ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
