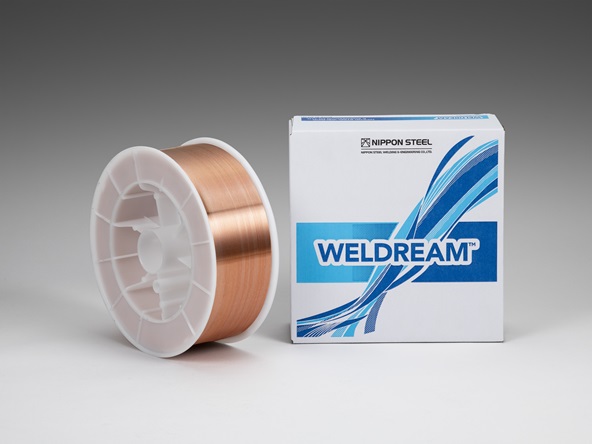

Corrosion Resisting Steel / CO2 Flux Cored Wire SF-50W
Characteristics
SF-50W is a rutile type seamless flux cored arc welding wire to be used with CO2 shield gas. The diffusible hydrogen content is extremely low and, consequently, the weld metal shows excellent crack resistance. The weldability is excellent, and, especially in horizontal fillet welding, the bead is beautiful and the slag is easy to remove.
Applications
Welding of 400 to 490MPa atmospheric corrosion resisting steel (W specification) such as SMA400W and 490W for steel frames and bridges.
- JIS Z 3320 T49J0T1-1CA-NCC1-UH5☆
- AWS A5.29 E71T1-GC-H4☆
Downloads
PRODUCT CATALOG
Approvals
Reference data
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
