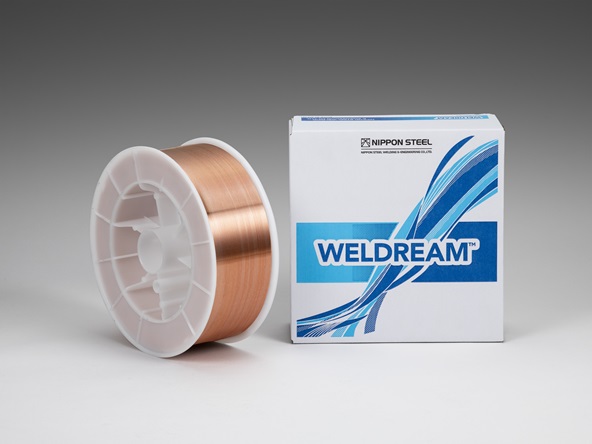

Corrosion Resisting Steel / CO2 Flux Cored Wire SF-60W
Characteristics
SF-60W is a rutile type seamless flux cored wire for welding 590MPa atmospheric corrosion resisting steel. The diffusible hydrogen content is extremely low and, consequently, the crack resistance is high. The spatters are few and the weldability is excellent.
Applications
Welding of up to 590MPa atmospheric corrosion resisting steel (W specification) such as SMA570W and 570W for steel brames and bridges.
- JIS Z 3320 T57J1T1-1CA-NCC1-UH5☆
- AWS A5.29 E81T1-W2C-H4☆
Downloads
PRODUCT CATALOG
Approvals
Reference data
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
