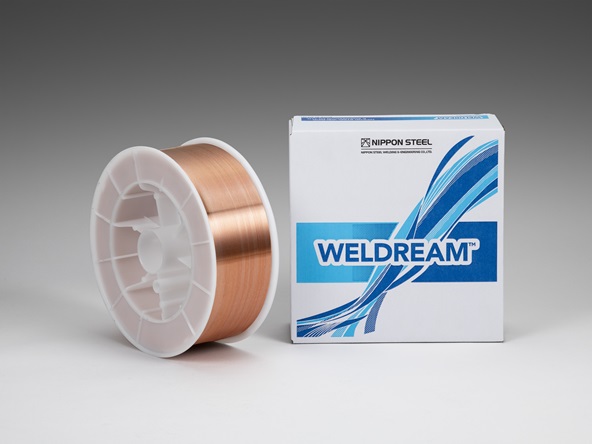

Low Temperature Service Steel / CO2 Flux Cored Wire SF-36F
Characteristics
SF-36F is a rutile-based seamless flux cored wire dedicated to flat fillet welding and horizontal fillet welding that enables stable toughness to be obtained over a low temperature range down to around -60°C. It gives excellent porosity resistance in the fillet welding of inorganic zinc primer coated steel plates.
Applications
Flat and horizontal fillet welding of low-temperature steels to be used for marine structures, shipbuildings, LPG vessels, and others.
- JIS Z 3313 T496T1-0CA-N1-H5
- AWS A5.29 E70T1-GC-H4☆
Downloads
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
