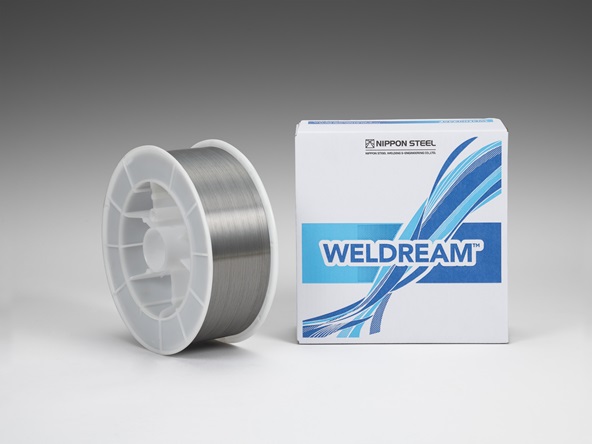

Stainless Steel / Self-Shielded Flux Cored Wire SF-N309L
Characteristics
SF-N309L is a Self-Shielded seamless flux cored arc welding wire of type 309L stainless steel. Shielding gas is unnecessary and welding cost is reducible. It is a few spatters, easily removable slag and a smooth bead appearance. In addition, the X-ray quality and the Mechanical properties of the weld metal is excellent.
Applications
Welding of dissimilar metal such as type 304L to carbon steel, welding the clad side of type 304L clad steels and cladding (surfacing) of stainless steel to carbon steel.
- JIS Z 3323 TS309L-FN0
- AWS A5.22 E309LT0-3☆
Downloads
PRODUCT CATALOG
Approvals
Reference data
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
