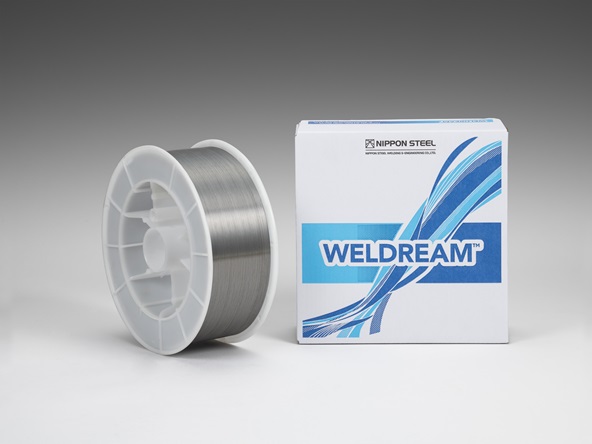

Stainless Steel / CO2, Ar+CO2 Flux Cored Wire SF-316L
Characteristics
SF-316L is a seamless flux cored arc welding wire to be used with CO2 or Ar+more than 20%CO2 shield gas. The spatters are few, the slag is easy to remove and the bead appearance and the shape are excellent. It is highly resistant to moisture absorption and the wire feeding is smooth since the wire has no seam. The high welding efficiency is assured in flat and horizontal fillet positions. The weld metal which is 18%Cr-12%Ni-2%Mo, contains an adequate amount of ferrite and shows excellent resistance to hot cracking.
Applications
Welding of low carbon 18%Cr-8%Ni stainless steel for chemical engineering and power plants.
- JIS Z 3323 TS316L-FB0
- AWS A5.22 E316LT0-1☆
Downloads
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
