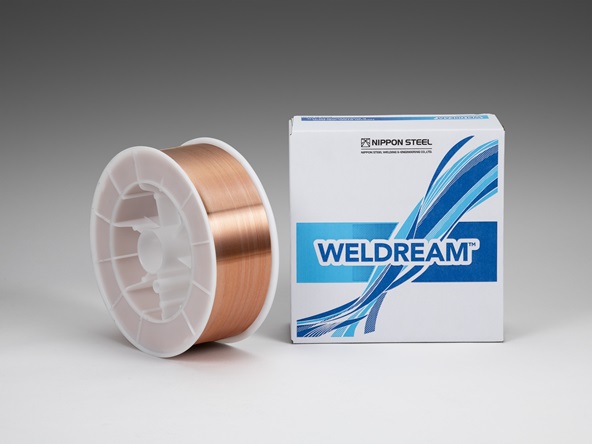

Heat Resisting Steel Boiler Tube/Pipe / CO2 Solid wire YM-505
Characteristics
YM-505 is stable, the spatters are few and the bead appearance is good. The preheating at 100 to 200°C and the weld metal is required postheating at 620 to 720°C. It is used at higt temperatures up to 500°C and is not suitable for low temperature operation.
Applications
Welding with CO2 gas for 0.5% Mo Steels such as piping steel (STPA12, A335-P1), boiler and heat exchanger tubes (STBA12, A209-T1), rooled steel (A204-A, B and C), cast steel (A217-WC1) and forged steel (A182-F1, A336-F1).
- JIS Z 3317 G49C-3M3T☆
- AWS A5.28 ER80S-G☆
Downloads
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
