Mild Steel·490~550MPa High Tensile Strength Steel / Ar GTAW Filler Wire and Rod YT-28
Characteristics

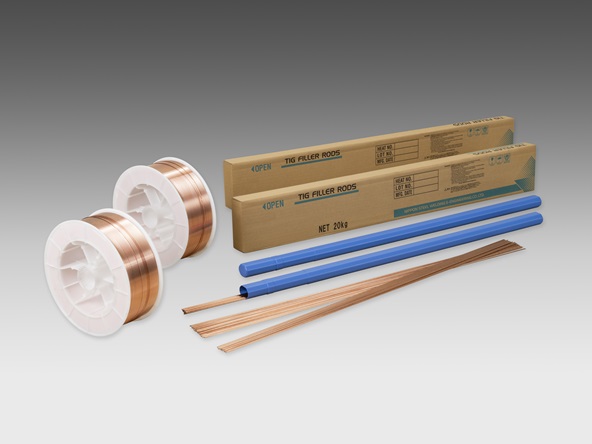

YT-28 is a filler rod and a spool wire for GTAW (TIG welding). to be used with Ar shield gas.
The weld metal shows stable toughness at low temperature range down to -40°C. The weld bead shape is excellent since high fluidity of molten pool and high affinity between molten pool and base metal. It also suitable for uranami (sound penetration bead) welding.
The operability is good since the surface of the filler rod is smooth.
Applications
Gas Tungsten Arc Welding of mild steel, 490MPa high tensile strength steel and aluminium-killed steel for low temperature service.
- JIS Z 3316 W49AP2U12☆
- AWS A5.18 ER70S-6☆
Downloads
PRODUCT CATALOG
Reference data
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
