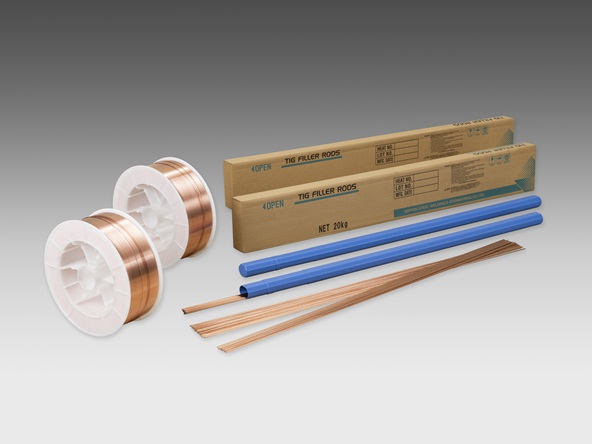

Mild Steel·490~550MPa High Tensile Strength Steel / Ar GTAW Filler Wire and Rod YT-28E
Characteristics
YT-28E is a filler rod for GTAW (TIG welding) to be used with Ar shielding gas. The weld metal shows stable toughness at low temperature range down to -40°C. The weld bead shape is excellent since high fluidity of molten pool and high affinity between molten pool and base metal. It also suitable for uranami (sound penetration bead) welding. The operability is good since the surface of the filler rod is smooth.
Applications
Gas Tungsten Arc Welding of mild steel, 490MPa high tensile strength steel and aluminium-killed steel for low temperature service.
- JIS Z 3316 W49AP3U12☆
- AWS A5.18 ER70S-G☆
Downloads
PRODUCT CATALOG
Approvals
Reference data
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
