570~980MPa High Tensile Strength Steel / Ar GTAW Filler Wire and Rod YT-70

Characteristics

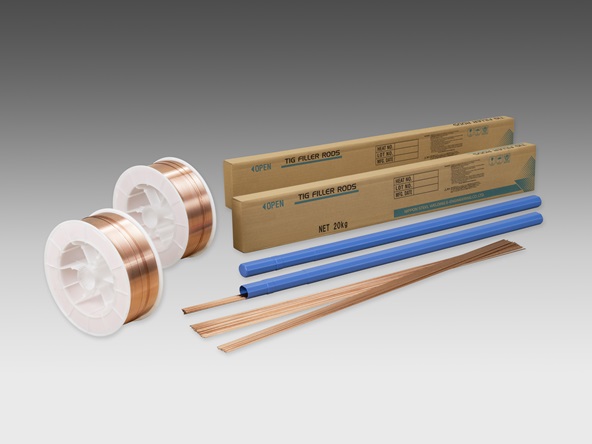

YT-70 is a filler rod and a spool wire for GTAW (TIG welding) to be used with Ar shield gas.
The weld metal shows stable toughness at low temperature range down to -20°C. The weld bead shape is excellent since high fluidity of molten pool and high affinity between molten pool and base metal. It also suitable for uranami (sound penetration bead) welding.
The operability is good since the surface of the filler rod is smooth.

Applications

Gas Tungsten Arc Welding of 690MPa and 100ksi high tensile strength steel for offshore structures, pressure vessels, tanks, penstocks, turbine casings, crane and construction machineries. It is also suitable for uranami (Sound penetration bead) welding with back shielding.

YT-70
  • JIS Z 3316 W69AP2UN4M3T☆
  • AWS A5.28 ER100S-G☆

Downloads

  • Not all product sizes have been certified.
  • Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
  • ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
  • ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
