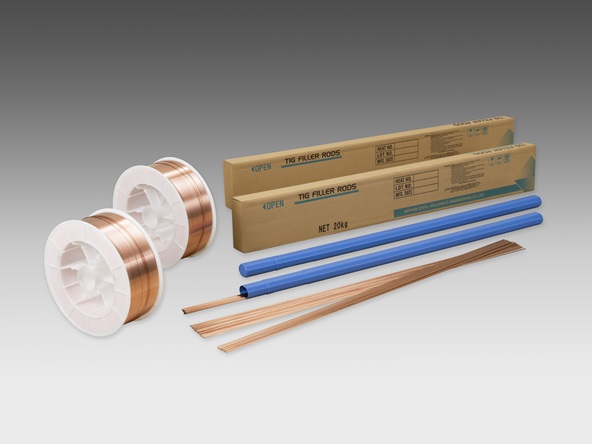

Heat Resisting Steel Boiler Tube/Pipe / Ar GTAW Filler Wire and Rod YT-511
Characteristics
YT-511 is a filler rod and a spool wire for GTAW (TIG welding) to be used with Ar shield gas. This product shows good welding performance in Uranami welding (penetration bead welding).
Applications
Welding of 2.25%Cr-1%Mo Steels such as ASTM A387 Gr.22 or A335 P22.
- JIS Z 3317 W55-1CMT☆
- AWS A5.28 ER80S-G☆
Downloads
PRODUCT CATALOG
Approvals
Reference data
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
