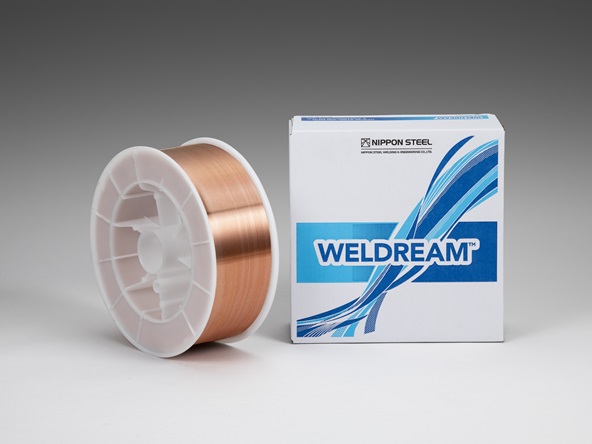

570~980MPa High Tensile Strength Steel / Ar+CO2 Flux Cored Wire SF-80A
Characteristics
SF-80A is a rutile type seamless flux cored arc welding wire to be used with Ar+20%CO2 shield gas. The weld metal shows excellent toughness in low temperature down to -40°C. The diffusible hydrogen content is as low as solid wire and crack resistance is excellent. The weldability in all position is excellent.
Applications
Welding of YS690 steel of down to -40°C for offshore structures, cranes and construction machines.
- AWS A5.29 E111T1-GM-H4☆
Downloads
- Not all product sizes have been certified.
- Approvals are updated from time to time, but in case of expiration or cannot find it, please inquiry via contact us.
- ☆It means that the product meets the classification requirements but that the JIS Mark system and AWS are not authentication to the classification by third parties.
- ★It means that the product meets most of the classification requirements. However, there is for example a partial deviation in chemical composition etc.
