PRODUCTSPLASMA WELDING / CUTTING, GOUGING
Peripheral equipment(option)
Wire feeder
When the wire is used, the following are required: wire feeder, wire feed and control unit, wire head, and conduit cable (+ relay conduit cable).
Wire feeder NF-1600/NF-1600R
| Type | NF-1600 |
|---|---|
| Applicable wire dia. | ⌀1.0/⌀1.2(⌀0.8/⌀0.9、⌀1.4/⌀1.6...option) |
| Feeding rate of welding wire | 20～450cm/min. |
| Applicable spool max. dia. | ⌀300(axis dia.⌀51) |
NF-1600R is used when the wire feeder is installed far from the torch; please contact us for details.

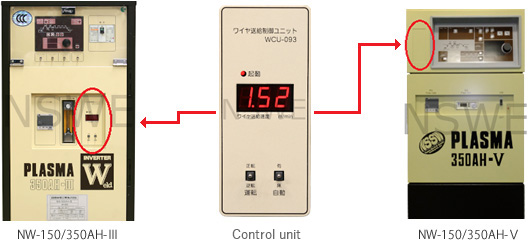

Wire feed and control unit WCU-593/WCU-093
Mount at the position in the image of each piece of welding equipment.
| Type | WCU-593 | WCU-093 |
|---|---|---|
| Input voltage | 3⌀ AC 200/220V ±10% 50/60Hz | |
| External linkage function | Wire feed amount command from robot wire melt stick signal |
|
| Applicable models | NW-150AH-V NW-350AH-V |
NW-150AH-III NW-350AH-III |
Wire head YH5/YH6
Outline drawing(Torch & Wire head)
| YH5 | YH6 | ||
|---|---|---|---|
| - | - | 50WH+YH6 | 51WH+YH6 |
| 50KWH+YH5 | 51KWH+YH5 | 50KWH+YH6 | 51KWH+YH6 |
| 100WH+YH5 | 101WH+YH5 | 100WH+YH6 | 101WH+YH6 |
| 503WH+YH5 | 504WH+YH5 | 503WH+YH6 | 504WH+YH6 |
| - | 107WH+YH5 | - | 107WH+YH6 |
| Type | YH5 | YH6 |
|---|---|---|
| Applicable models | Applicable to almost all torch models. | |
| Applicable wire dia. | ⌀0.8～⌀1.2 | ⌀0.8～⌀1.6 |
| Remarks | For narrow part welding | For normal welding |
Conduit cable
Chiller & Radiator
NC-3500V/NC-5500V (Chiller for NW-150/350AH-V)
| Type | NC-3500V | NC-5500V |
|---|---|---|
| Input voltage | 1⌀ AC 200/220V ±10% 50/60Hz | |
| Cooling capacity | 2.00/2.30kW | 4.9/5.3kW |
| Power consumption | 1.7/1.8kW | 2.0/2.5kW |
| Range of environmental temperature | 5～45℃ | |
| Adjustable range of water temperature | 5～40℃ | |
| Cooling agent refrigerant | R-410A | |
| Outer size (W×D×H) |
375×500×615 | 375×590×933 |
| Weight | About 51kg* | About 75kg* |
| Applicable plasma machine | NW-150AH-V | NW-150AH-V NW-350AH-V |
*Mass of cooling water is not included.
NC-3000/NC-5000 (Chiller for NW-150/350AH-III)
| Type | NC-3000 | NC-5000 |
|---|---|---|
| Input voltage | 3⌀ 200/220V±10％ 50/60Hz | |
| Cooling capacity | 2.00/2.20kW | 4.30/4.65kW |
| Power consumption | 0.85/1.05kW | 1.6/2.1kW |
| Range of environmental temperature | 5～40℃ | |
| Adjustable range of water temperature | 5～25℃ | |
| Cooling agent refrigerant | R-407C | |
| Outer size (W×D×H) |
534×405×398(mm) | 650×500×600(mm) |
| Weight | About 43kg* | About 70kg* |
| Applicable plasma machine | NW-150AH-III | NW-150AH-III NW-350AH-III |
*Mass of cooling water is not included.
An optional cooling water circulation unit (WCU-597) is required when used in conjunction with the NW-150/350AH-V.
NR-1800 (Radiator for NW-150/350AH-III)
- The base price is more inexpensive and power consumption is less than those of a chiller.
- Temperature sensor is equipped as standard.
- Function interlocking with welding machine
| Type | NR-1800 |
|---|---|
| Input voltage | 1⌀ AC 200V±10％ 50/60Hz |
| Cooling capacity | 2.00kW *1 |
| Power consumption | About 72/81W |
| Range of environmental temperature | Ambient temperature 40℃ or less |
| Outer size (W×D×H) |
648×400×705(mm) (Vertical) |
| 500×500×212(mm) (Lay down) |
|
| Usable current range | 1100A or less *2 |
| Weight | About 27kg(Vertical) *3 |
| About 22kg(Lay down) *3 | |
| Temperature sensor unit | An error ｢E11｣ is output from welding machine when the water temperature rises. |
- *1The cooling performance depends on outside air and flow rate of cooling water.
- *2The range of applicable welding current depends on the combined torch.
- *3Mass of cooling water is not included.
Remote controller WCU-596/096
Remote control of welding conditions by means of volume is available.
| Type | WCU-596 | WCU-096 |
|---|---|---|
| Applicable plasma welding machine | NW-150AH-V NW-350AH-V |
NW-150AH-III NW-350AH-III |
Concerning the options for NW-150/350AH-V
Choice of options
Standard accessories can be selected for a desired application.
- Pirot gas flow control unit
- Mass flow controller NMF-C0005 (High precision)
- Dedital flow meter NDFM710 (Simple type)
- Cooling water flow sensor
- Didital flow switch NDFS-504 (High precision)
- Flow switch NFSW-TN (Simple type)
Arbitrary options
The following options may be incorporated as needed.
- Current monitor, voltage monitor, pilot gas flow monitor, WK-5972
- Various parameters can be externally output for monitoring.
- Cooling water drainage unit DGU-A
- To drain the cooling water in the inside, and to prevent water leakage during replacement of the tip, torch, or torch hose.
- Cooling water circulation unit WCU-597
- This option is needed when used in combination with tank-less chiller (NC-3000/5000) and radiator (NR-1800), because of the absence of water tank and water feed function for both welding machine and cooling equipment.
- Power factor improving unit NW350/150-5 DGU
- To improve the power factor, thereby allowing you to efficiently use the power of welding machine; please contact us for details using the inquiry forms given at the end.
- Base frame CF3500/5500V
- Base frame on which welding machine and chiller are installed.
NC-3500…CF3500V
NC-5500…CF5500V - Robot interface cable AIFC-10m
- Communication cable to the robot. It is available as an option only for YRC1000 manufactured by Yaskawa Electric Corporation.
If you want to use it in combination with other robots, please use the inquiry form at the bottom.
The following options, which are equipped as standard through NW-150/350AH-III, are now available as options from NW-150/350AH-V.
- Primary side power cable 14sq×4c×5m
- Base metal cable 38sq×5m
- Gas regulator(Pirot gas/Sield gas) NFR
- Primary side gas hose(Pirot gas) EPH-4m
- Primary side gas hose(Sield gas) TBH-4m
The depletion of electrode may be worse for some gas hoses than for those from the equipment manufacturer.
The base cable thickness is 38 sq unless otherwise specified. Select the number of sq according to the current used.
Please use the contact form for inquiries about product prices and application considerations.
