PRODUCTSPLASMA WELDING / CUTTING, GOUGING

Powder overlaying and thermal spraying

Powder transferred arc welding(PTA)

Powder transfered arc welding(PTA)

Overlay welding where powder (metal powder) is used as filler material in plasma welding. Local overlay welding of the workpiece is used for surface reforming or strength improvement.

Catalog

Welding example
Engine valve Welding example
Engine valve
Inner face of pipe Welding example
Inner face of pipe
Joint of clad steel Welding example
Joint of clad steel
Device example
Maniplator type
Maniplator type
Robot type
Robot type
Other types of dedicated equipment(Valve powder overlay welding equipment)
Other types of dedicated equipment
(Valve powder overlay welding equipment)
Features
  1. It is possible to perform overlay welding of high hardness material, which is difficult to process into welding wire or filler rod, or of special material.
  2. Similar to the case of usual plasma welding, high reproducibility is obtained by automatic welding, suitable for mass production.
  3. Powder gives a good melting efficiency for wire or filler rod in terms of shape, and allows welding with low distortion and low dilution* with minimum heat input.
  4. Cost can be reduced by overlaying only the surface and by the use of inexpensive material as welding base metal.
  5. Unlike MAG and MIG, in plasma welding, welding conditions and the amount of input filler material can be separately controlled, and therefore the penetration (amount of dilution), bead shape, and amount of deposition can be readily controlled without extra excess weld metal, contributing to elimination of post processes.
  6. For the same reason, application to parts of various large and small sizes is possible by the adjustment of welding conditions.
  7. Because of covering with inert shielding gas and low dilution, infiltration of impurities from the outside of arc and welding base metal can be prevented, thereby producing a less defective bead.
  8. It is resistant to peeling off because welding base metal and bead are melted and tightly fused.
  9. Welding by hand is also possible, applicable to minor repair welding of parts.

When dilution (penetration) occurs, components of welding base metal penetrate into the bead; the less dilution, the closer the surface hardness, corrosion resistance, or other performance indicators are to those of the powder itself.
Since plasma powder overlay welding is basically used under the condition of applying the arc to the molten pool, welding base metal and molten pool are welded almost solely by heat conduction (welding base metal is not affected by the arc pressure), giving minimum dilution.

Torch
351PPH
351PPH
200PPH(pipe inner face)
200PPH(pipe inner face)
Type 351PPH
Current
to be used
For small
current
~100A
For midium
current
~200A
For large
current
~300A

Change the tip of 351PPH depending on the welding current to be used.

Various torches are available; please contact us.

Powder feeder

Device to be used for feeding powder through tube to the tip of torch

351PPH

Type PH-3B
Capacity 1.6ℓ
Amount of powder to be fed 5~80g/min*

In the case of Stellite

Applicable powder

Stable feeding of gas atomized powder (spherical) of particle size of 100 to 250 µm (150 to 60 mesh) is possible.
Feeding of metal cutting powder (chip-shaped) is not impossible, but stable feeding is not guaranteed.

Example applications
Example applications
〇Spherical appearance
〇Within the standard of particle size
Examples of difficult applications
Examples of difficult applications
×Long and narrow shape
×Particle size is too small.

In the case of powder of alloys whose components may generate gases during melting or of alloys that are poor in affinity with welding base metal, welding quality will be very poor or welding will not be successful.

The principle of plasma powder overlay welding

Hand plasma powder overlay welding

Hand plasma powder overlay welding

Powder overlay welding can now be performed easily by hand welding. It is ideal for partial repair of high-hardness components and for parts produced in small quantities and in high-mix production.

See the catalog for details.

Catalog

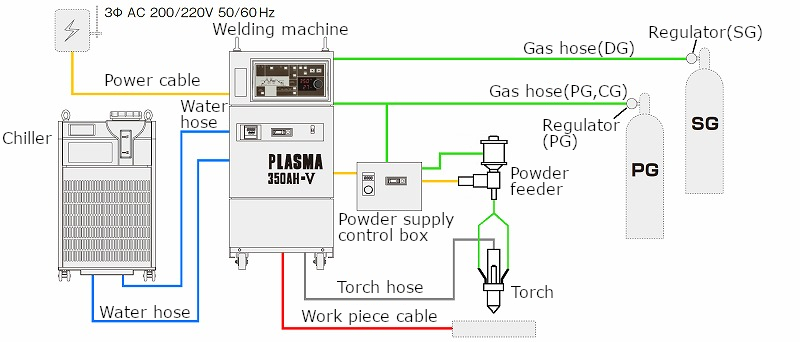

Standard configuration

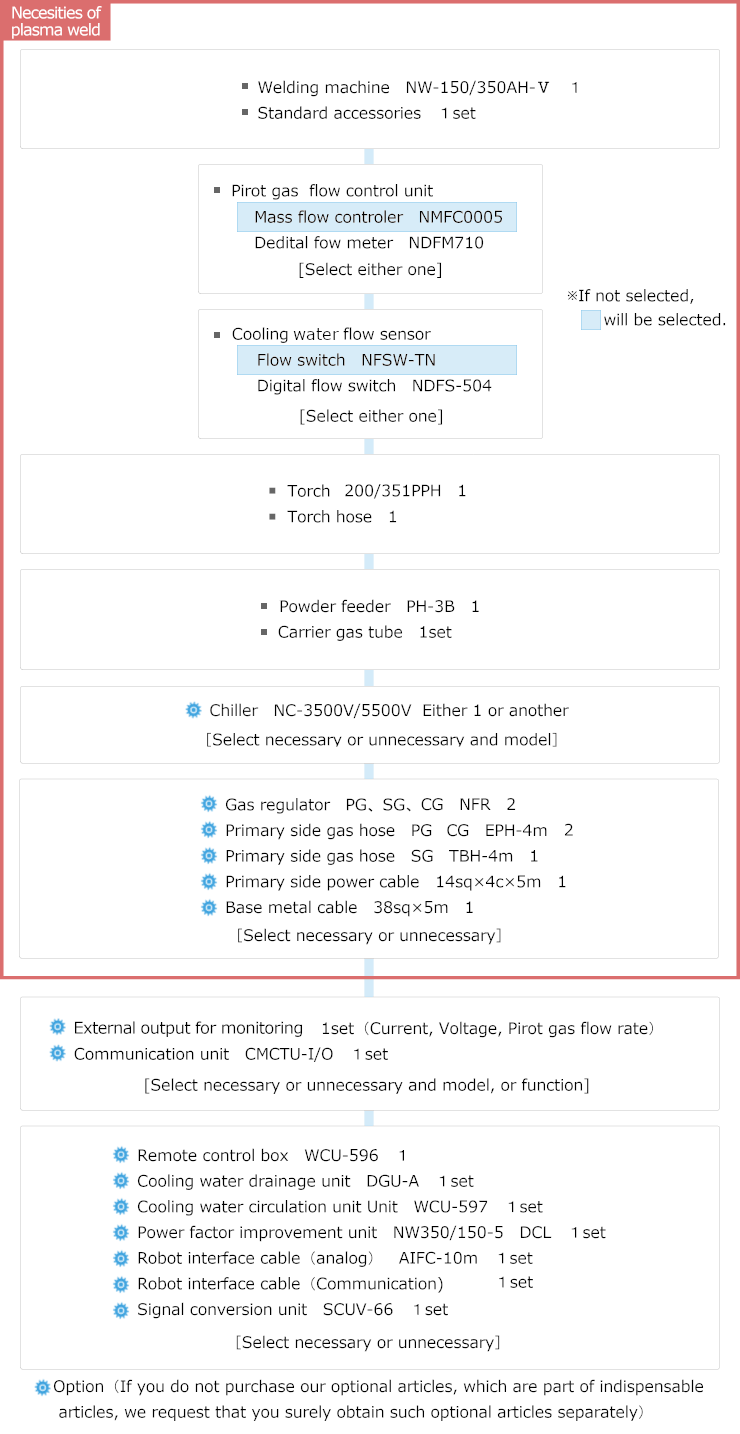

Standard configuration

NW-150/350AH-V

Standard configuration[NW-150/350AH-V]

Thermal spraying equipment

Thermal spraying equipment

Features
“Establishing the plasma spraying system of the 21st century”
  1. Presenting the total system such as mechanized spraying based on our welding automation technology
Spraying in use/examples of application
Steel
Nonferrous metal
Roll inside furnace, refining roll, coating roll, hydraulic plunger, fan blade, pump/valve parts, wire drawing parts
Petrochemical Thermocouple, extrusion/ejection screw, piston rod, pump/valve parts
Textile Guide parts, bobbin, spindle, draw roll, heater plate
Home appliance
Electronic machinery
Computer parts, VTR drum, copy roll, acoustic diaphragm, robotic parts, hot plate, oxygen detection sensor, far infrared heater
Aircraft
Ships
Vehicle
Engine parts(turbin wing, compressor wing, burner, fan wing, cylinder, piston, piston ring), exhaust pipe, transmission parts, turbo housing
Pump
Valve
Mechanical seal ring, plunger, sleeve, bush, valve sheet
Others Marine development, electric power, glass, cement, paper manufacture, printing, implant material, thermocouple, gradient function material, other machinery parts
Thermal spraying equipment

This equipment is so designed that the metallic powder is supplied into high temperature plasma column, and therefore is applicable to the spraying of ceramics of high melting point and others
Applicable also to such expanded fields as automobile, electronic fields,etc. where there is a great progress in the surface quality improvement technology, and aviation and space fields where high resistance to abrasion, heat and corrosion is required.

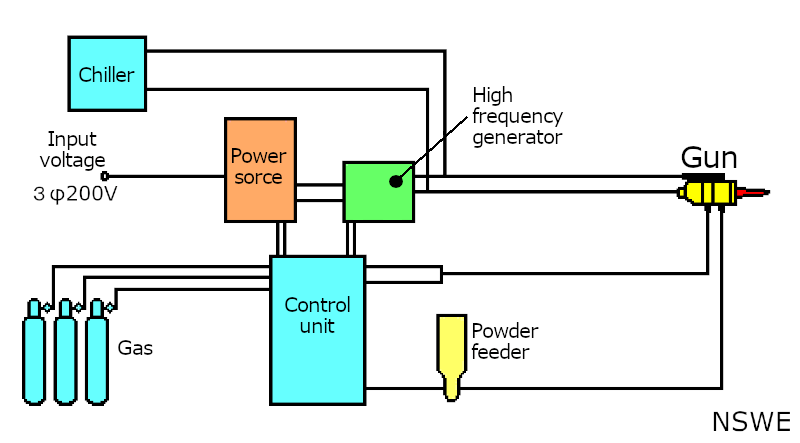

Standard configuration

Thermal spraying equipment Standard configuration

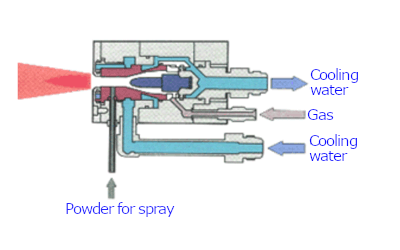

Composition of plasma spraying gun

Composition of plasma spraying gun

Specification
Power 100~1000A (1250A)
Output voltage Max. 66V
Rated duty cycle 100% (60%)
Spraying gun SG-100:
Power 40KW,80KW
Primary gas Argon
Secondary gas Helium, hydrogen
Allowable supply amount of metallic powder 3,360cc

Please use the contact form for inquiries about product prices and application considerations.
